Truck System Technologies

TST RV Display Monitor for TPMS

SKU:
TST-507-D
UPC:
850492008042
  • TST RV Display Monitor for TPMS
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • TST RV Display Monitor for TPMS
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • TST RV Display Monitor for TPMS
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • TST RV Display Monitor for TPMS
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • TST RV Display Monitor for TPMS
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • TST RV Display Monitor for TPMS
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
$74.00
Grayscale or Color Display
FREE SHIPPING 100% GUARANTEE

Description

Having a Tire Pressure Monitoring System is not very useful if you do not have a way of viewing the information that it provides you. Damage can occur to even the toughest of screens, and if the screen to your TPMS has become damaged, you may be driving blind. If you need to replace an old or broken TPMS display for your TST Tire Pressure Monitoring System, RecPro has you covered.

features

The display of your TST Tire Pressure Monitoring System is a vital component. The TPMS display is what allows you to view all of the information gathered and provided by the tire sensors. This replacement TST display is compatible with TST 507 series Tire Pressure Monitor Systems and gives you a choice between a grayscale option and a full-color option. With the TPMS display, you are able to monitor the pressure and temperature of your tires as you travel, with updated information provided to you every five minutes. The TPMS display will allow you to monitor up to 4 different vehicles or tire orientations at once on its 1 ⅝” tall by 3 ¼” wide screen. Suppose there is an issue with your tires, and they fall outside of the set parameters. In that case, the display will warn you using audio and visual alerts. The parameters for these alerts are user-programmable, meaning you can easily set your own thresholds for low pressure, high pressure, and high-temperature alarms.

grayscale features

Details:

  • Color or Grayscale options
  • Compatible with TST 507 series TPMS systems
  • Warns you of issues with your tires via audio and visual alerts
  • User programmable alarms
  • Provides updated tire information every 5 minutes
  • Lets you monitor up to 4 separate vehicles or orientations
  • Rechargeable lithium battery
  • Five to seven-day battery life on a full charge
  • The battery recharges in four hours
  • The motion detection backlight turns on when the vehicle is in motion
  • Mounts, charging cable, and power adapter are not included

Specs:

  • Temperature Operating Range: -4℉(-20℃) to 176℉(80℃)
  • Storage Temperature Range: -22℉(-30℃) to 185℉(85℃)
  • Display Input Voltage: 5v to 24v DC
  • Frequency: 433.92 MHz

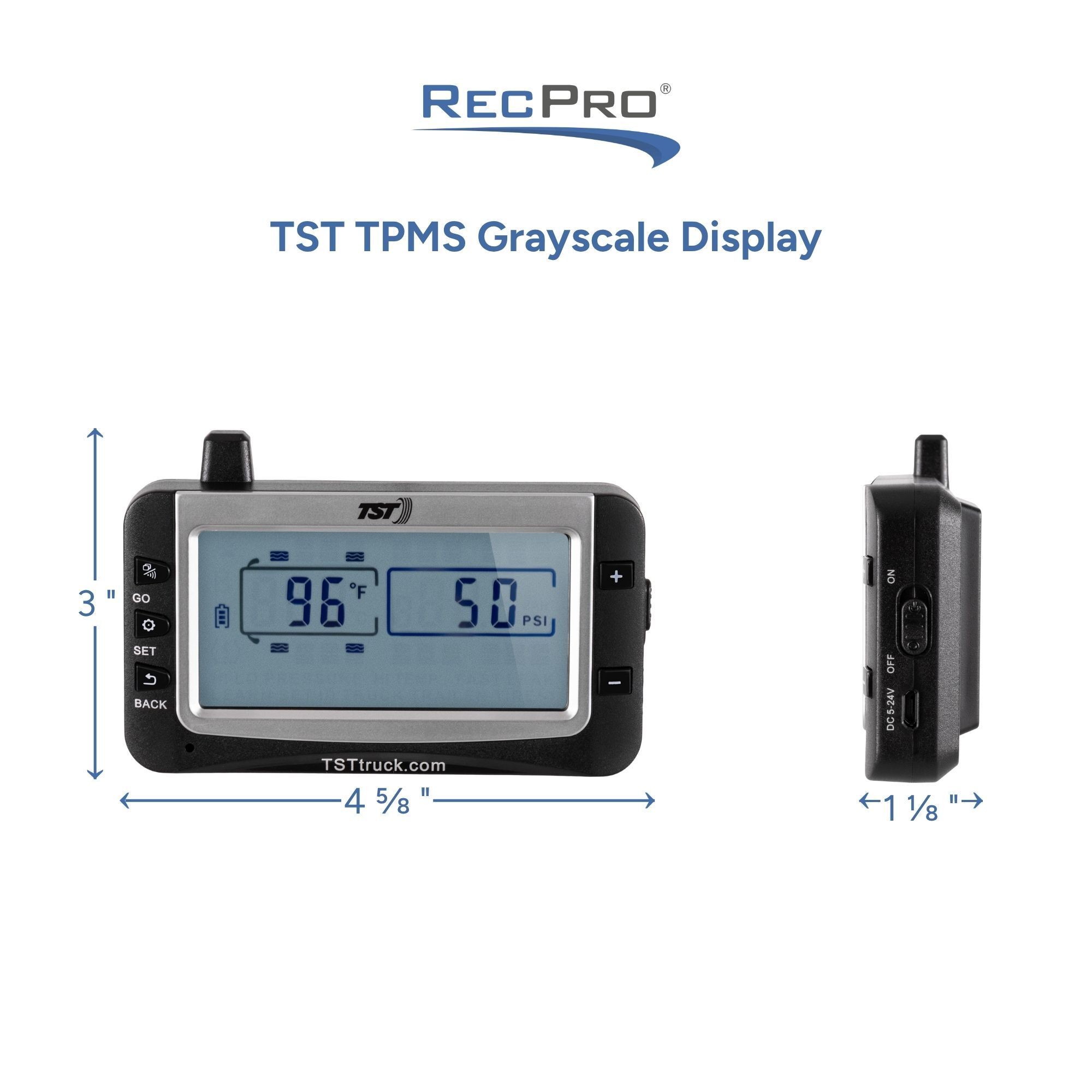

  • Size: 4.6” L x 2.99” W x 1.06” D
  • Screen Size: 1 ⅝” Tall x 3 ¼” Wide
  • Weight: 4.4oz

color display measurements

This TPMS display is equipped with a powerful lithium rechargeable battery. This batter can take up to four hours to fully charge, but a full charge can give you between five and seven days of use from your TPMS before needing to recharge once again. Even better, the TPMS display features a motion detecting backlight that will turn on when the vehicle is in motion and turn off after a period of inactivity to further save on battery power. Mounting devices, charging cable, and power adapter are not included with this replacement TST TPMS display. The overall dimensions of this replacement TPMS display measure 4.6” Long by 2.99” wide by 1.06” deep, a bit smaller than your average smartphone.

There sure is a lot to enjoy with the TST 507 series TPMS display for such a small device. If you need to replace an old, broken, or malfunctioning TST TPMS display, then let RecPro help you out. You can use our website or speak with our Customer Care team members online or over the phone to get the TST 507 series Tire Pressure Monitoring System Display you need! If you have any questions or comments, feel free to reach out to us online or over the phone.
