Truck System Technologies

TST RV 8 Sensor TPMS with Repeater - Color Display

0 stars, based on 0 reviews
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • TST RV 8 Sensor TPMS with Repeater - Color Display
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • TST RV 8 Sensor TPMS with Repeater - Color Display
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • TST RV 8 Sensor TPMS with Repeater - Color Display
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
  • RV 8 Sensor Tire Pressure Monitoring System with Repeater
free shipping iconFREE SHIPPING guarantee icon100% GUARANTEE


Everyone wants to stay safe on the road, especially when driving a large vehicle like an RV or towing multiple trailers. Improving your safety on the road does not need to be an arduous chore. Monitoring the condition of your tires before, during, and after travel is one of the easiest ways to stay safer on the road. Keeping track of the state of your tires is especially important when towing trailers or operating a large, heavy vehicle. Many expensive and dangerous accidents have happened because of a hot or leaky tire with low air pressure, accidents that could have been avoided! Let RecPro help you stay safer on the road with a TST Tire Pressure Monitoring System!

A Tire Pressure Monitoring System is a system that is designed to monitor and provide information regarding the condition of your tires, namely your tire pressure and temperature. A Tire Pressure Monitoring System is also referred to as a TPMS. Most modern vehicles are built with a TPMS already equipped, so the chances are high that you have seen one before. However, many larger vehicles and towable equipment such as trailers do not have a TPMS pre-equipped, which means you will have to install one yourself. You have found the right place if you want to find a TPMS that is easy to equip on your rig.

Color/Grayscale Display
Our Tire Pressure Monitoring System includes a 4 ½" LCD screen in color or grayscale. The display monitor to this TPMS can provide you with much information. It can monitor up to four different trailers or 115 tire positions if you have additional sensors (additional sensors are NOT included with the original 8 in this kit). The display for our TST TPMS does not use any wires to connect to your rig, apart from the charging cable. Simply plug in the power, and it is ready to use! The monitors for competing TPMS kits often require careful wiring that can be complicated, tedious, and time-consuming to install, but not our TST TPMS!

 monitor dimensions

The monitor of this TPMS is built using a lithium battery, which provides the monitor with hours of power. The monitor's battery can be charged with ease by using a micro USB cable and 12v DC vehicle power adapter. These devices are included in this system, so you will not need to find your own. The display to the TPMS is very clear and lights up brightly, making it easy for your eyes to read and understand the information presented on your tires. When the lights die down during nighttime driving or if you are going through a tunnel, the TPMS monitor will automatically dim so that you are not blinded by the light it produces. You can check out the temperature of your tires in °° or ° C and look at the pressure of your tires in either PSI or BAR. A suction cup mount and a rubber cradle mount are included with this TST Tire Pressure Monitoring System, giving two easy ways to mount the display to your rig.

back of monitor

The TPMS display is more than just a way to view information about your tires. Suppose a problem occurs with your tires, such as overly high temperatures or low pressure. In that case, the display will use visual, audio, and text alarms to warn you. These alarm thresholds are customizable thanks to the easy-to-use push-button programming.

Cap Sensors - Easy To Use
sensorThis Tire Pressure Monitoring System from TST is designed to be as convenient as possible, especially with its installation. Eight cap sensors are included in this kit, and they have plenty to impress you with. The eight cap sensors attach to your tires the same way as a standard valve stem cap, making them easy to install in only a few minutes. It may not seem like it, but this is a huge advantage to have, as most sensors in competing TPMS kits have to be installed inside the tire, forcing you to tear down your whole wheel. You will not have this problem with these cap sensors, simply screw them on, and you are done.

A small 3v CR2032 battery is equipped with all eight cap sensors, providing up to a year of power to the sensors. The batteries are easy and quick to replace, and the cap sensors will not lose code lock during battery replacement. These cap sensors are designed to last a long time, featuring water and weather-resistant properties that make them durable and help withstand the road's rigors. Every twelve seconds, the cap sensors gather updated information on the pressure and temperature of your tires, giving you accurate real-time information as you travel. That data is then sent to the display of your TPMS, which updates the information on the screen every five minutes. The cap sensors can read a tire pressure ranging from 1 to 218 PSI and a Temperature Range of -40°°(-40° C) to 176°°(80° C).

Our TPMS includes eight anti-theft hex nuts, which are used to secure your cap sensors and prevent them from being taken off the valve stem. The anti-theft hex nuts are designed to be very easy to use. Simply attach a hex nut to the valve stem, then attach the cap sensor. Use one of the two included cap wrenches to tighten the hex nut to the cap sensor, and you are done.

cap sensor installed

Extended Distance With Signal Repeater
repeaterThis TST TPMS kit offers you a lot more than just sensors and a display. Inside this TPMS, you will also find a handy signal repeater. The signal repeater in this TPMS kit is an especially handy piece of equipment, especially when you are towing several trailers or driving large rigs. The signal repeater has a simple but important function; it strengthens and amplifies the signals produced by your cap sensors on their way to the TPMS display. Even better, it only takes a few minutes to install this fantastic signal repeater.

Two wires on the signal repeater connect this device to your rig - one black wire and one red wire with a 2amp fuse. The signal repeater uses a 12v DC power supply to operate as you travel. You will need to ensure that the power source you connect the signal repeater to will constantly run as you drive. The signal repeater is built to be tough and weather-resistant, giving it the durability needed for use inside or outside your RV. This TPMS kit includes a hook and loop fastener patch and screws for installing the signal repeater.




  • Easy to install
  • Anti-theft hex nuts
  • Grayscale or Color display
  • Monitors up to 4 trailers or 115 tire positions - including spares
  • Perfect for RVs, trucks, motorhomes, trailers, cargo/agricultural equipment, and more

Cap Sensors:

  • Easily installs on the valve stem
  • Water-resistant
  • Detects leaks and high temperatures quickly
  • Read pressure and temperature every 12 seconds
  • Sends updated readings to the display every 5 minutes
  • Replaceable 3v CR2032 long-lasting batteries
  • Pressure reading range of 1 to 218 PSI
  • Temperature range of -40°°(-40° C) to 176°°(80° C)
  • Do not lose the code lock when replacing the battery
  • Does not require you to tear down your tire to install


  • 4 ½" LCD display
  • Colored or Black/White
  • Rechargeable lithium battery
  • The display automatically dims in dark conditions
  • Programmable pressure and temperature alarms can be configured by axle
  • Visual, audio, and text alarms for pressure and temperature
  • Pressure can be displayed as PSI or BAR
  • Temperature can be shown in ° C or °°
  • Simple to program


  • Strengthens and amplifies the signal between the sensors and the display
  • Two-wire connection to a 12v constant power supply
  • Weather-resistant
  • 2amp fuse


  • 1 Display
    • Options for colored or grayscale
  • 2 Cap sensors
  • 2 Mounts - Suction Cup and Rubber Cradle
  • 1 Repeater
  • 1 12v DC power adapter with a three-foot micro USB cable

Installation Hardware:

  • 2 Screws
  • 2 Cap wrenches
  • 8 Hex nuts, rubber inserts, and rubber O rings
  • 1 Hook-and-loop-fastener patch
  • 1 Manual
  • 1 TST brand sticker and labeling sticker set
  • 1 Three year warranty registration card


suction cup mount

Quick Installation
accessoriesThis Tire Pressure Monitoring System from TST is quick and easy to install, taking only a few minutes of your time. This TPMS kit includes all the installation hardware you need to get it going, such as screws, hex nuts, cap wrenches, and fasteners. If you are confused about the installation or operation of this TPMS, refer to the highly-detailed manual included with the kit. Also included in this kit is a TST brand sticker and a 3-year warranty registration card.

To install this TST Tire Pressure Monitoring system, first set the units for temperature and pressure on the display, followed by setting the high temperature, low pressure, and high-pressure alarms. Pair and program each sensor you will be using on your rig to the display. You will then be ready to install the hardware of the TPMS.

rubber cradle mountBegin with the TPMS display. Installing the TPMS display is very simple, and you have two options for mounting it. For the suction cup mount, snap the mount onto the tabs located on the back of the display, then attach the suction cup portion of the mount to the windshield, side window, or any other smooth, nonporous surface. Attach the USB cord to the display and the 12v adapter, then plug the adapter into the vehicle's power port. Charge the battery for up to four hours, and remember to unplug the display when the battery is fully charged.

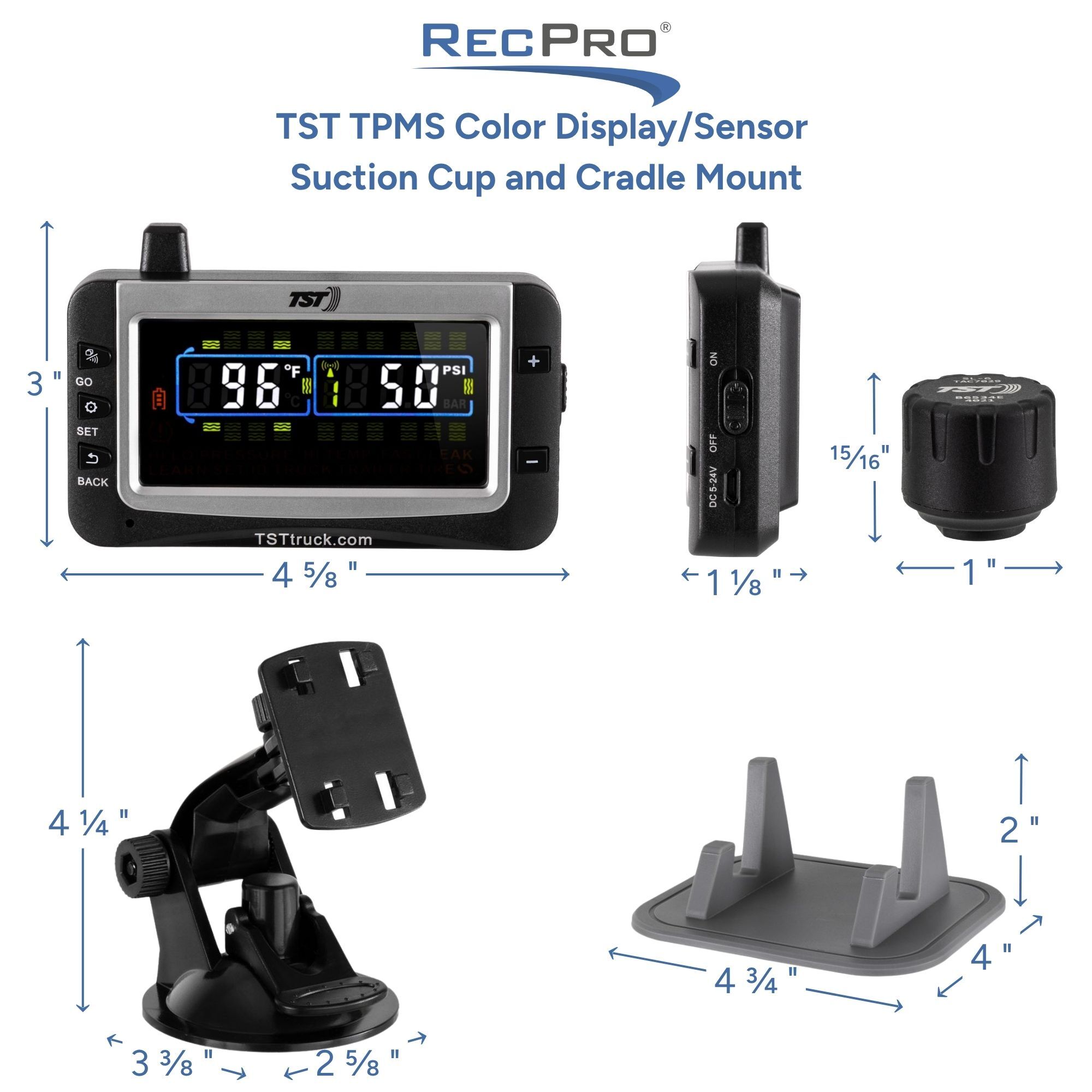

Mount Measurements

The cap sensors are even easier to install. Start by screwing the anti-theft hex nut onto the valve stem, then screw on the cap sensor that corresponds to that tire position. Screw the cap sensor on until it bottoms out, then give it an additional quarter turn. Use your fingers to snug up the hex nut to the bottom of the cap sensor, then use the included wrench to tighten the hex nut.

The Ideal TPMS

Monitoring the pressure and temperature of your tires as you travel is incredibly important, especially when hauling a trailer or driving a large rig. With a TST Tire Pressure Monitoring System of your own from RecPro, you can easily keep yourself a little bit safer on the road. If you have questions or comments about this TPMS, please reach out to us over the phone or online.
