RecPro®

RV KIB Tank Sensor Monitor Panel M23 with Wiring Harness Kit

0 stars, based on 0 reviews
SKU:
RP-M23W-KT
  • KIB Tank Sensor Monitor Panel M23 with Wiring Harness Kit
  • KIB Tank Sensor Monitor Panel M23 with Wiring Harness Kit
  • RV KIB Tank Sensor Monitor Panel M23 with Wiring Harness Kit
  • RV KIB Tank Sensor Monitor Panel M23 with Wiring Harness Kit
  • KIB Tank Sensor Monitor Panel M23 with Wiring Harness Kit
  • RV KIB Tank Sensor Monitor Panel M23 with Wiring Harness Kit
  • KIB Tank Sensor Monitor Panel M23 with Wiring Harness Kit
  • KIB Tank Sensor Monitor Panel M23 with Wiring Harness Kit
  • KIB Tank Sensor Monitor Panel M23 with Wiring Harness Kit
  • RV KIB Tank Sensor Monitor Panel M23 with Wiring Harness Kit
$69.95
$69.95
free shipping iconFREE SHIPPING guarantee icon100% GUARANTEE

Description

black sensor panel installedwhite sensor panel installed

When do you fill or empty your tanks? Some people do so on a schedule and others only do so as needed. If you are new to the business, you may not be in a set routine and looking for a way to gauge your usage. Or maybe you've been around for a while and have decided you need to get something reliable and efficient for your tanks. This all-inclusive package is great for any scenario.

The M23 monitor comes in white or black to blend with the interior of your leisure travel or concession vehicle. Made from durable high-density plastic, this easy to understand indicator can monitor the balance of your water system for years of visibility. Once properly installed and tied to your 12V battery, it will keep tabs on your water tanks and battery voltage. It also provides the capability of controlling the water pump and heaters.

features

When you buy a freshwater, gray, or holding tank from RecPro, it is blank so that you can configure it to your set-up. This is perfect for customization, but are you really going to reuse your old probes? Probably not. That means you will need probes and wires so you can set up your system and calibrate it all at once.


If your current monitor is giving off false readings or you are installing new tanks, it might be time for a complete water sensor reboot. Able to keep tabs on your tanks, water heater, battery, and water pump, these handy gauges are a wealth of information on their own. But as a kit with the probes and wiring harnesses, you are ready for a complete overhaul.

Details:

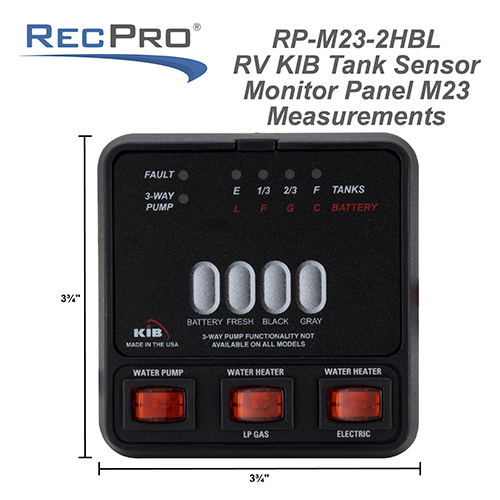

  • Overall Dimensions: 3 3/4"W x 3 3/4"H
  • Bolt hole spacing: 3"W x 2"H (hole center to hole center)
  • K101 "pigtail" wiring harness included
  • Made in USA
  • Color: White or Black
  • Easy readout
  • Monitor tank levels
  • Monitor battery level
  • Control for water pump
  • Controls for electric and gas water heaters

Technical Data:

  • 12V DC



The C, G, F, and L on the monitor stand for the charge of the battery (Charge, Good, Fair, and Low). Charge is set for 12.70-12.85V. Good is for 12.10-12.15V. Fair is for 11.60-11.65V. Low is for 6.00V and less. All values are in DC Volts plus/minus 5%.
