ASA Electronics

Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System

SKU:
RP-2327
UPC:
193652082200
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
  • Voyager RV Wireless Backup Camera with 7" Monitor for Prewired System
$479.00
FREE SHIPPING 100% GUARANTEE

Description

There is no denying that RVs, campers, and trailers are large and bulky vehicles that can be pretty cumbersome to drive. These large rigs often hamper your visibility, making it difficult to see what is around you. Backing out of a driveway or camping spot can be challenging, and changing lanes can be dangerous when you cannot see what is around you. RecPro is here to help you get a great look at your surroundings with this Voyager Wireless WiSight 2.0 7" Monitor and Camera!

Get A Good Look

The Voyager Wireless WiSight 2.0 monitor and camera can give you excellent visibility of the surrounding environment when you are traveling with a large rig such as an RV. With the Voyager Wireless WiSight 2.0 system, you can have a much easier time keeping track of your surroundings. Installing the Voyager camera system is effortless, especially if your RV, camper, or trailer is pre-wired for Voyager WiSight systems! Look for a plate on your rig's exterior labeled "Voyager."

camera setmonitor setIncluded in this kit are:

  • 7" Voyager Wireless WiSight 2.0 monitor (1)
  • Voyager WiSight 2.0 camera for pre-wired systems (1)
  • Monitor mounting clip (1)
  • Suction cup mount (1)
  • 12v DC power cable (1)
  • Monitor mounting screws (4)
  • Camera mounting screws (6)
  • Allen wrench (1)
  • Pigtail wire adapter for non-pre-wired systems (1)

monitor features

7" Monitor

monitorThis Voyager Wireless WiSight 2.0 monitor is an excellent piece of equipment to have on your rig. This monitor can support up to four WiSight 2.0 cameras (additional cameras are not included), giving you a great view of what is behind and beside you. This 7" monitor features an auto-pairing function that helps you quickly and effortlessly pair your cameras to the monitor with a push of a button. This wireless monitor is also easy to install on your rig, as it can be mounted via the suction cup mount and powered with the 12v DC power cable.

This 7" monitor display gives you bright and clear imaging with strong signal transmission through and around objects for up to sixty feet, giving you a clear image of your surroundings. The 7" Voyager Wireless WiSight monitor supports mirrored and standard camera imaging as well as quad, split, and single camera views. If you have multiple WiSight 2.0 cameras, you will be able to view them at the same time. This monitor also features an integrated microphone for audio feedback.

infographic

Camera Details:

  • Compatible with WiSight 2.0 monitors
  • High-performance color optics
  • CMOS sensor technology
  • IR LED Low-Light Assist
  • Built-in microphone
  • Wide viewing angle
  • Waterproof
  • 12v DC powered
  • Includes Voyager WiSight 2.0 Camera, mounting screws, allen wrench, and pigtail wire adapter



Camera Specs:

  • Power System: 12VDC
  • Operating Voltage Range: 10 ~ 18V, Supports GM PWM
  • Power Consumption (MAX): 230 mA
  • Operating Temperature Range: -20°C to 65°C
  • Storage Temperature Range: -30°C to 85°C
  • Operating Relative Humidity: 100%
  • Waterproof Rating: IPX6
  • Overall Dimensions: 5.52" x 3" x 2.82"
  • Product Weight (unpackaged): 10.56 oz
  • Video Output Signal Format: NTSC
  • Video Signal Level: 1.0V p-p ; 75Ω
  • Audio: Microphone
  • Sensor: 1/3" CMOS
  • Sensitivity: 0 Lux
  • Image Orientation: Mirror (Reversed)
  • Resolution: 1.3MP ( 960p HD)
  • View Angles: 135°(D) 102°(H) 72°(V)

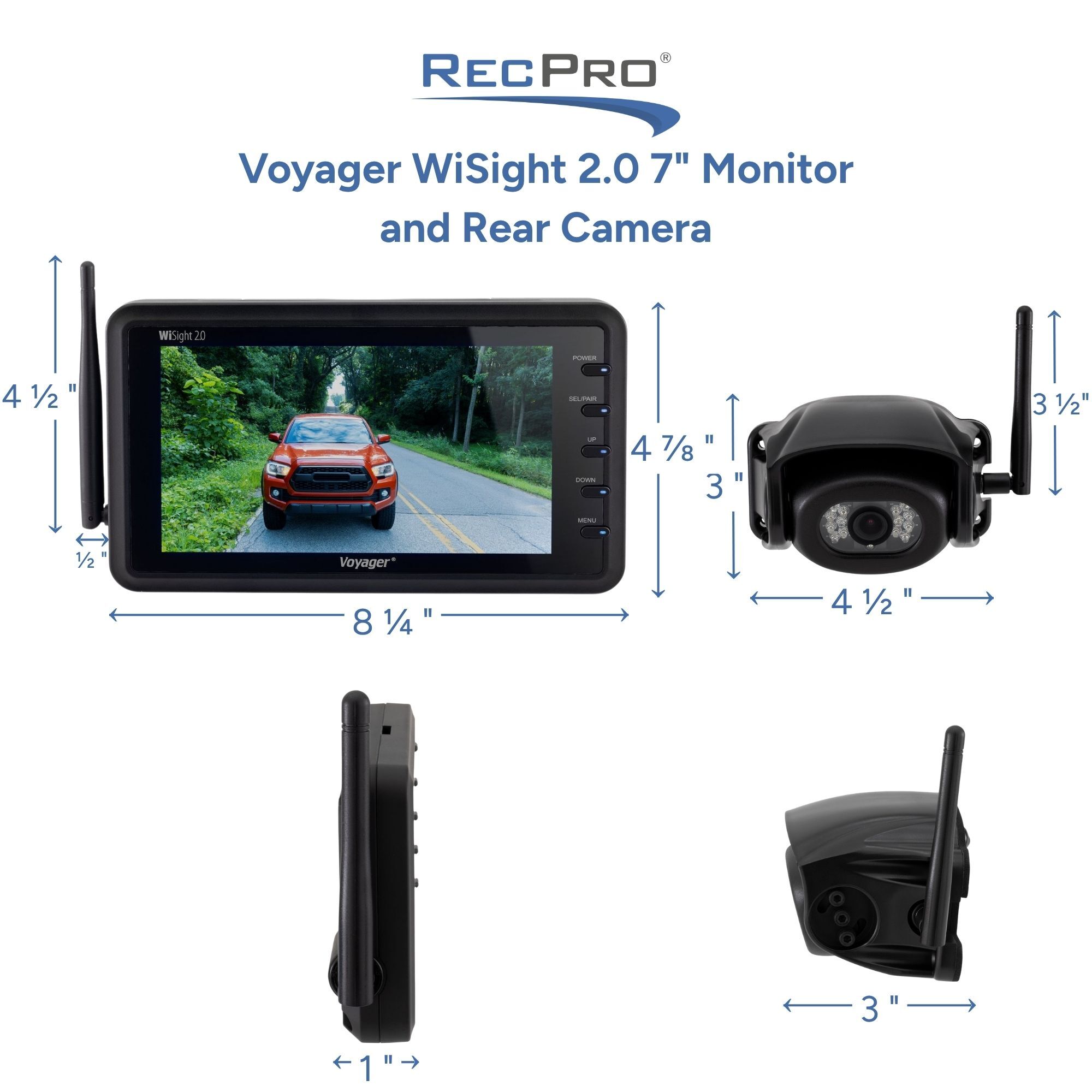

camera measurements



monitor measurements

  • Monitor Details:
  • Supports up to four wireless cameras
  • Auto-pairing allows the monitor to pair with cameras with one button press
  • Strong signal transmission up to 60' away
  • 7" display with bright imaging
  • Supports mirrored and normal camera image
  • Supports single, split, and quad camera views
  • Integrated speaker
  • Easy to install
  • Includes 7" display monitor, suction cup mount with clip, 12v DC power plug, mounting screws



Monitor Specs:

  • Power System: 12VDC
  • Operating Voltage Range: 10 ~ 16V
  • Power Consumption (MAX): 675 mA
  • Operating Temperature Range: -4F to 149F
  • Storage Temperature Range: -22F to 158F
  • Operating Relative Humidity: 95%
  • Overall Dimensions: 1.06" x 4.88" x 8.19"
  • Product Weight (unpackaged): 18.4 oz
  • Video Output Signal Format: NTSC
  • Video Signal Level: 1.0V p-p ; 75Ω
  • Audio: 1.0 watt
  • Resolution: 800 x 480
  • View Angles: 70°(H) 70°(V)
  • Brightness: 400 nit
  • Contrast Ratio: 500:1
  • Response Time: 30ms(R) 40ms(F)
  • Display Format: 16:9



Camera
This camera is designed for WiSight 2.0 systems and will not work with first-generation WiSight products. This camera is designed with high-performance color optics combined with CMOS sensor technology. This camera can provide fast, detailed imaging of your surroundings as you travel, helping you stay more aware as you drive. The IR LED Low-Light Assist feature helps ensure excellent image quality even in low-light conditions or when driving at night. Combined with the wide viewing angle, this camera will give you an excellent high-quality view and clear sound from the integrated microphone.

infographic

This camera is built to give you long-lasting use and reliability. It has been given a waterproof design and is made using high-strength materials. You do not need to feel concerned about this camera being ruined from rain, mud, or even a stray pebble kicked up from the road. This camera is designed for Voyager pre-wired systems but can be used on non-pre-wired systems thanks to the included pigtail adapter.


See More, Stay Safer
Making sure you can see what is behind and around you as you travel with a large rig, such as an RV, is a fantastic way to keep yourself safer. Give our Customer Care Team a call or use our website to get a Voyager Wireless WiSight 2.0 7" monitor and camera for your rig.
