Voyager RV Wireless Backup Camera with 7" Monitor DIY System

SKU:
RP-2326
UPC:
193652082194
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
  • Voyager RV Wireless Backup Camera with 7" Monitor DIY System
$479.00
FREE SHIPPING 100% GUARANTEE

Description

Getting around in an RV, trailer, or camper can be a cumbersome task all on its own. The large and bulky size of rigs like these can make it difficult to see what is around you when maneuvering into your camping spot or traveling on the road. Low visibility of your surroundings can make traveling in a rig such as an RV feel dangerous and anxiety-inducing. RecPro is here to help with our Voyager Wireless WiSight 2.0 7" Monitor and Camera.

features

The Visibility You Need

The Voyager Wireless WiSight 2.0 7" Monitor and Camera is an easy way to get the improved visibility you need when traveling with a large rig such as an RV, trailer, or camper. This camera and monitor system from Voyager lets you effortlessly view what is next to you or behind you when maneuvering or driving your rig. The Voyager monitor and camera are only compatible with WiSight 2.0 products and will not work with first-generation WiSight products. Additionally, this kit is designed for non-prewired systems.

Included in this kit are:

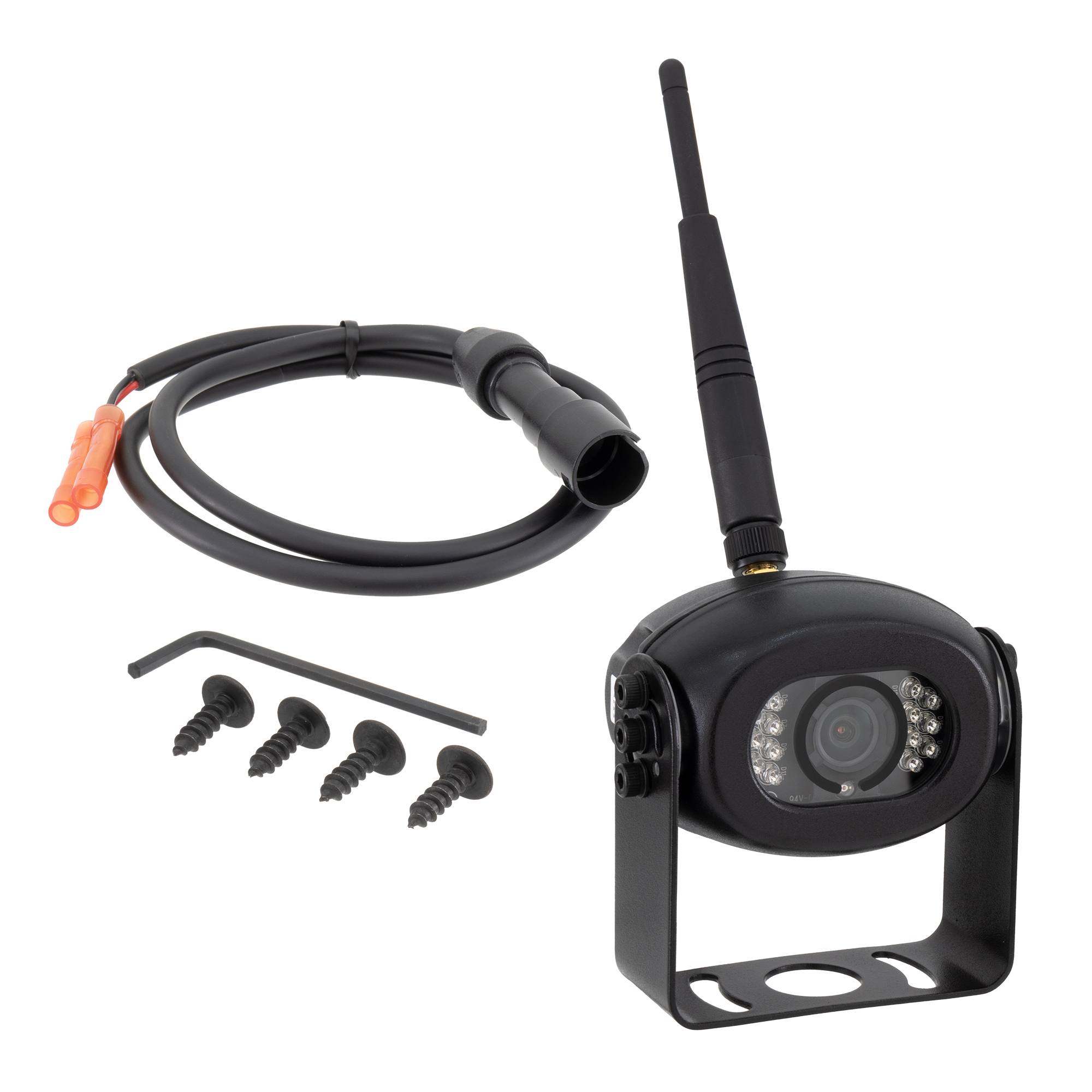

camera set

  • 7" Voyager Wireless WiSight 2.0 monitor (1)
  • Voyager WiSight 2.0 camera for pre-wired systems (1)
  • Monitor mounting clip (1)
  • Suction cup mount (1)
  • 12v DC power cable (1)
  • Monitor mounting screws (4)
  • Camera mounting screws (6)
  • Allen wrench (1)
  • Pigtail wire adapter for non-pre-wired systems (1)

monitor set

The 7" Voyager Monitor

rp-2321.jpgThis 7" Voyager monitor is how you will see the images from the camera to view your surroundings. This wireless monitor can support up to four Voyager WiSight 2.0 cameras. However, this kit contains only one camera. Additional cameras are sold separately. Whether you have one camera or four, they are easy to pair with this monitor thanks to the convenient auto-pairing feature. The 7" Voyager WiSight 2.0 monitor even offers fantastic signal transmission through and around objects for up to sixty feet.

The 7" Voyager monitor offers support for standard and mirrored camera imaging. This monitor also supports single, split, and quad camera views depending on the amount of WiSight 2.0 cameras you are using. Not only does this 7" monitor offer you bright and clear imaging, but it also features a built-in speaker for crisp and clear sound. What's more, this 7" display monitor is super easy to install because of the included suction cup mount, clip, and 12v DC power plug.

features

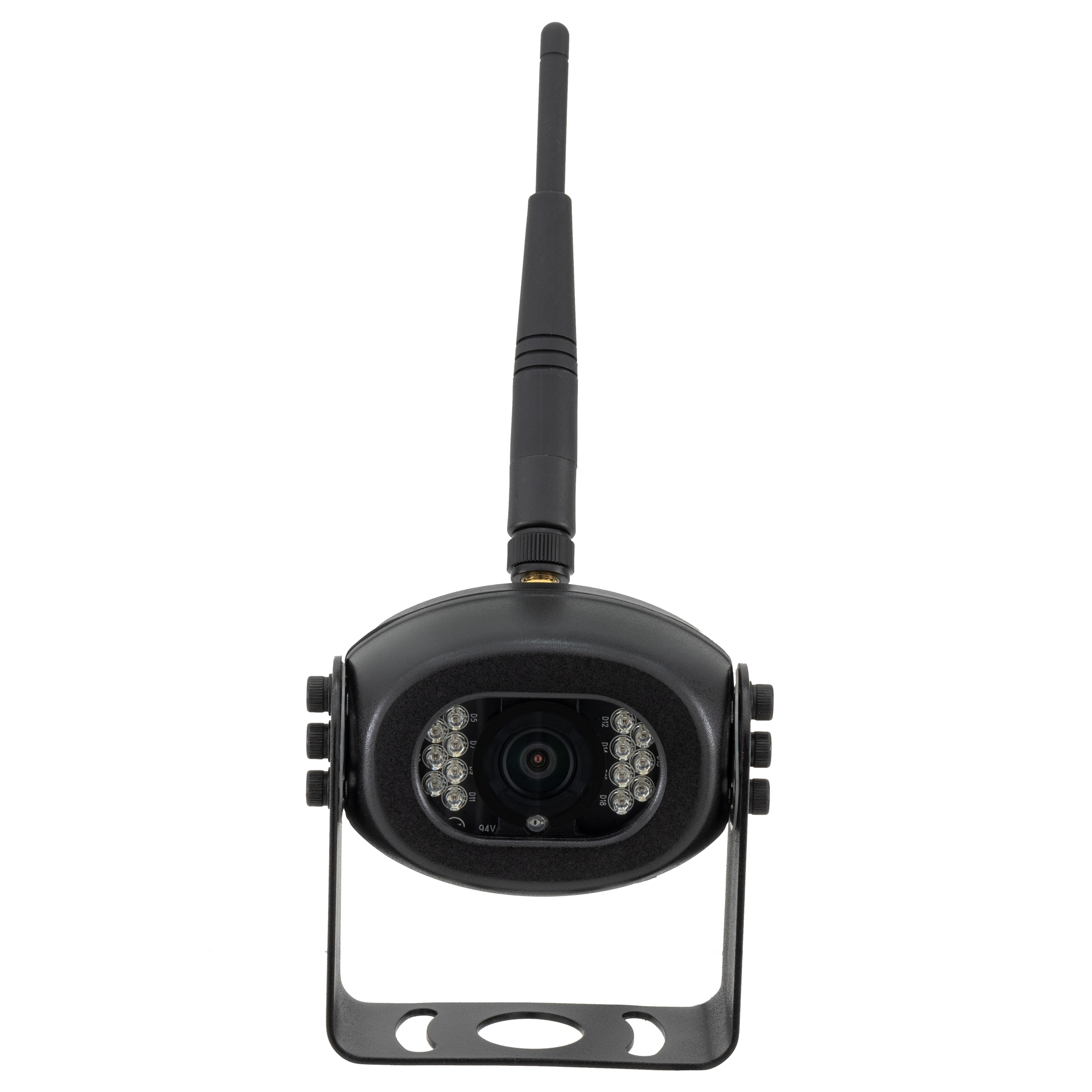

The Camera

cameraThe Voyager WiSight 2.0 camera is only compatible with other WiSight 2.0 products, such as the monitor included in this kit. It is not compatible with first-generation WiSight products. This camera is designed for RVs that are not prewired for Voyager products. Installation hardware is included with this camera, including a 12v DC power connection cable that lets you connect the camera to your rigs' 12v DC power.

This externally-mounted waterproof camera is built with high-performance optics and fast CMOS sensor technology, both of which are combined with a wide viewing angle. This provides high-quality imaging with excellent detail combined with fast image processing so that you can keep track of your surroundings in real-time. Thanks to the IR LED Low-Light Assist and integrated microphone, you can even hear and keep track of your surroundings in low-light conditions, such as driving at night.

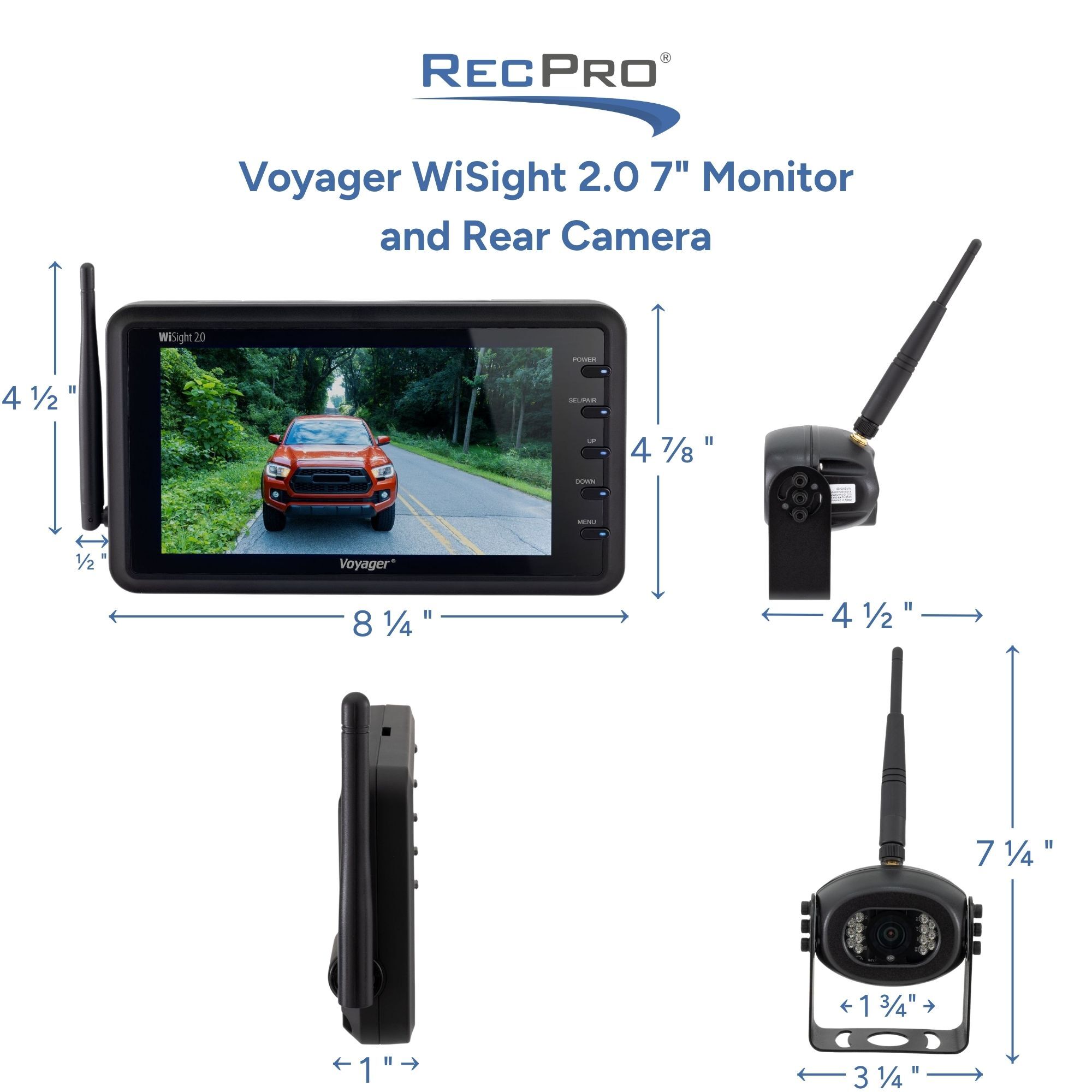

monitor measurements
Monitor Details:
  • Supports up to four wireless cameras
  • Auto-pairing allows the monitor to pair with cameras with one button press
  • Strong signal transmission up to 60' away
  • 7" display with bright imaging
  • Supports mirrored and normal camera image
  • Supports single, split, and quad camera views
  • Integrated speaker
  • Easy to install
  • Includes 7" display monitor, suction cup mount with clip, 12v DC power plug, mounting screws

Monitor Specs:

  • Power System: 12VDC
  • Operating Voltage Range: 10 ~ 16V
  • Power Consumption (MAX): 675 mA
  • Operating Temperature Range: -4F to 149F
  • Storage Temperature Range: -22F to 158F
  • Operating Relative Humidity: 95%
  • Overall Dimensions: 1.06" x 4.88" x 8.19"
  • Product Weight (unpackaged): 18.4 oz
  • Video Output Signal Format: NTSC
  • Video Signal Level: 1.0V p-p ; 75Ω
  • Audio: 1.0 watt
  • Resolution: 800 x 480
  • View Angles: 70°(H) 70°(V)
  • Brightness: 400 nit
  • Contrast Ratio: 500:1
  • Response Time: 30ms(R) 40ms(F)
  • Display Format: 16:9

Camera Details:

  • Compatible with WiSight 2.0 monitors
  • High-performance color optics
  • CMOS sensor technology
  • IR LED Low-Light Assist
  • Built-in microphone
  • Wide viewing angle
  • Waterproof
  • 12v DC powered
  • Includes Voyager WiSight 2.0 Camera, mounting screws, allen wrench, and pigtail wire adapter

Camera Specs:

  • Power System: 12VDC
  • Operating Voltage Range: 10 ~ 18V, Supports GM PWM
  • Power Consumption (MAX): 230 mA
  • Operating Temperature Range: -20°C to 65°C
  • Storage Temperature Range: -30°C to 85°C
  • Operating Relative Humidity: 100%
  • Waterproof Rating: IPX6
  • Overall Dimensions: 5.52" x 3" x 2.82"
  • Product Weight (unpackaged): 10.56 oz
  • Video Output Signal Format: NTSC
  • Video Signal Level: 1.0V p-p ; 75Ω
  • Audio: Microphone
  • Sensor: 1/3" CMOS
  • Sensitivity: 0 Lux
  • Image Orientation: Mirror (Reversed)
  • Resolution: 1.3MP ( 960p HD)
  • View Angles: 135°(D) 102°(H) 72°(V)

*Only compatible with WiSight 2.0 products. Not compatible with first-generation WiSight products.*

*Kit contains one monitor and one camera. Additional cameras are sold separately.*

camera measurements

Travel With Confidence

Driving in a big rig with low visibility can be incredibly anxiety-inducing. Make sure you have excellent visibility of your surroundings with the help of this Voyager Wireless WiSight 7" monitor and camera kit. Give our Customer Care Team a call or use our website to get a Voyager monitor and camera kit for your RV, camper, or trailer. Reach out to us over the phone or online if you have any questions or comments!
