RVs get a bad reputation for being cramped and small, but with slide outs, the small space feels bigger and more luxurious. Slide outs give you more room to stretch out and relax, store your items, and more. But having this extra piece on your rig means taking extra care to keep it working well. The slide out motor itself needs specific care, as it is what moves the slide out in and out. If you have heard some not so great noises coming from this motor or if it has stopped working altogether, it's time for a replacement.

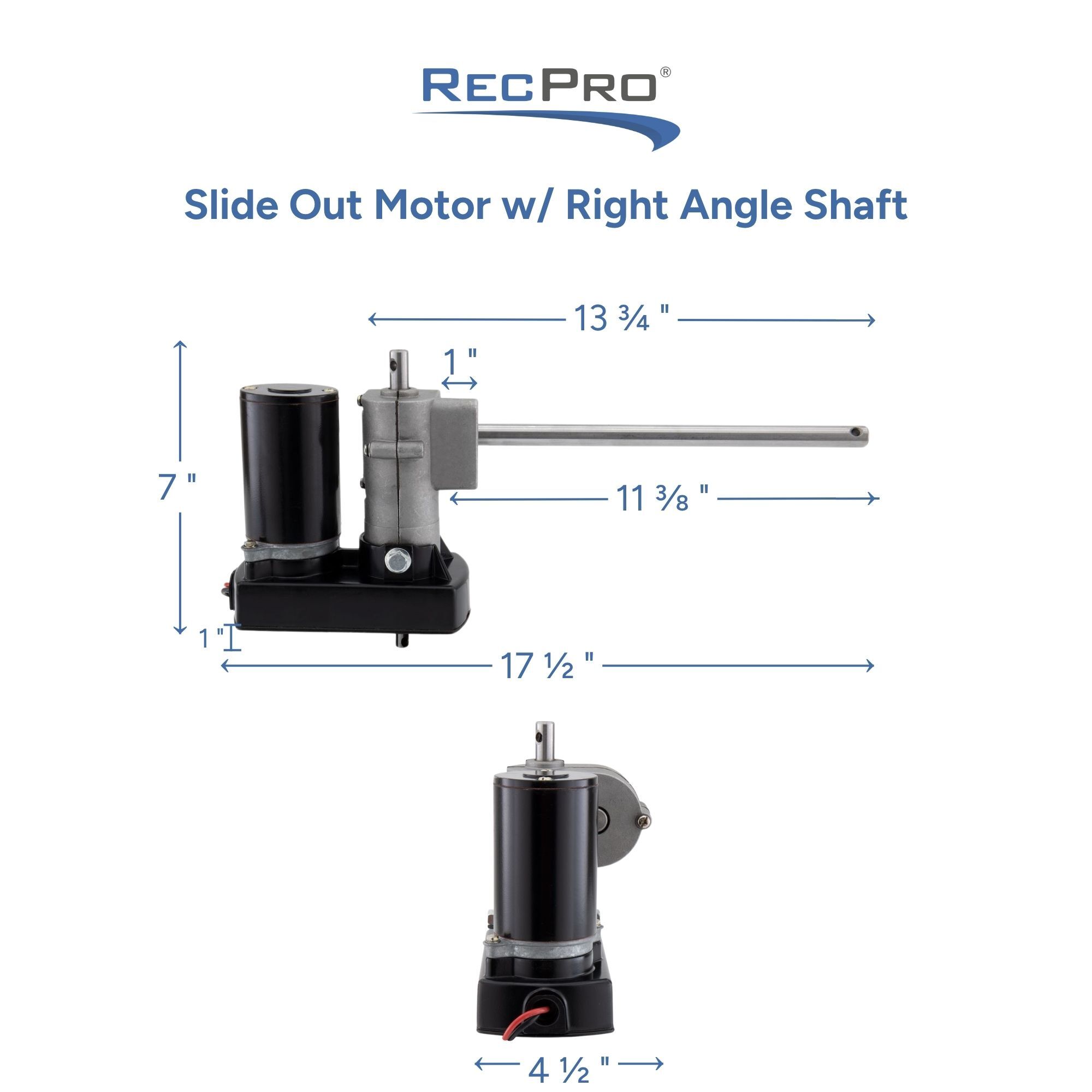

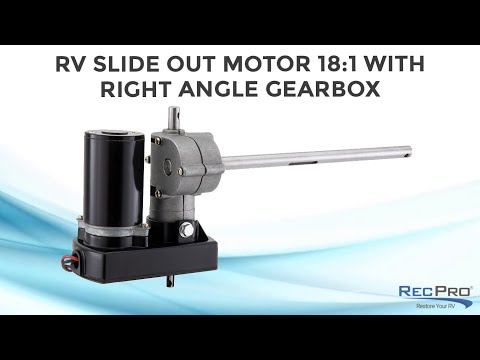

This replacement RV slide out motor has a gear ratio of 18:1 and has a R.A.G. worm drive with shaft. The drive shaft is at a 90-degree angle. The overall dimensions for this motor are: 7" high by 4-1/2" wide by 17-1/2" long. The shaft measures 11-3/8" long. It runs on 12V power and is rated for 30 Amps and 5,800 RPM. It is made in America. This RV slide out motor is a direct replacement for the following: Lippert 117292 and 133612, Keystone RV 223613.
Keeping your slide out in good condition is vital to being able to expand your space and your camping capabilities. Replacing your slide motor when it's no longer working as it should not only saves your RV slide, but saves your campout as well. Have any questions? Contact us online or call our friendly Customer Care team today!
Details:
- RV Slide Out Motor
- Dimensions (overall): 7"H x 4 1/2"W x 17 1/2"L
- Dimensions (shaft): 11 3/8"L
- 90-degree drive shaft
- Direct replacement for:
- Lippert 117292 and 133612
- Keystone RV 223613
- R.A.G. worm drive with shaft
- Made in America
Technical Data:
- 12V
- 30 Amps
- 5,800RPM
- Gear Ratio: 18:1
