RecPro®

RV Slide Out Motor 18:1 Ratio

0 stars, based on 0 reviews
SKU:
RP-785615
  • RV Slide Out Motor
  • RV Slide Out Motor Dimensions
  • RV Slide Out Motor 18:1 Ratio
  • RV Slide Out Motor 18:1 Ratio
  • RV Slide Out Motor 18:1 Ratio
  • RV Slide Out Motor 18:1 Ratio
  • RV Slide Out Motor 18:1 Ratio
  • RV Slide Out Motor 18:1 Ratio
  • RV Slide Out Motor 18:1 Ratio
$194.95
$194.95
free shipping iconFREE SHIPPING guarantee icon100% GUARANTEE

Description

Slide outs are a part of your RV that you want performing without fail when you get to your destination. Few things would be as disappointing as getting to your campground after traveling hundreds of miles, hooking up your rig, leveling it perfectly, and then when you start your slide out…nothing happens. Avoid this scenario by adding a solid performer in the 18:1 motor line from RecPro.

Our motors have a solid metal housing, strong drive motor, and lifetime lubrication. With these great qualities, you won't need to crack open the housing and apply lubricant after just a few uses and you won't be disappointed when you open your slide out again for your next vacation. Reliable, durable, and functional, these units are in it for the long haul. Add one to your recreational vehicle today and add convenience and reliability to your rig.

Having a stable and easy-to-use slide out can mean the difference between a terrific vacation and one filled with frustration and stress. With this motor, that's exactly what you get. If you want this solid performer inside of your RV, then call our friendly Customer Care Department and order yours today! Have any questions? Contact us online or give us a call.

Will this work for my RV slide out unit?

*To confirm that you have chosen the correct motor (in function and size) for your slide out, please review manufacturer specifications before purchasing*

**Available for overnight shipping**

RV Slide Out Motor

Details:

  • Dimensions (base): 6 1/4" L x 3 1/2" W
  • Dimensions (height): 6 1/2" H
  • 20% Duty Cycle typical (1 on/4 off)
  • Lifetime lubrication
  • Cast aluminum housing
  • Standard mounting
  • Vertical post: 5/16" Diameter
  • Pin: 3/4" L
  • Bar housing: 2" ID
  • Vertical post: 5/8" H
  • Actuator Bar (extended length: bottom of base to the tip of the threaded bar): 92"
  • Actuator Bar (compressed length: bottom of base to the tip of the threaded bar): 56 1/8"
  • Main cylinder housing: 46 5/8"

Technical Data:

  • 12V DC
  • 5800 RPM
  • 30 AMP
  • 18:1 (GEAR) RATIO

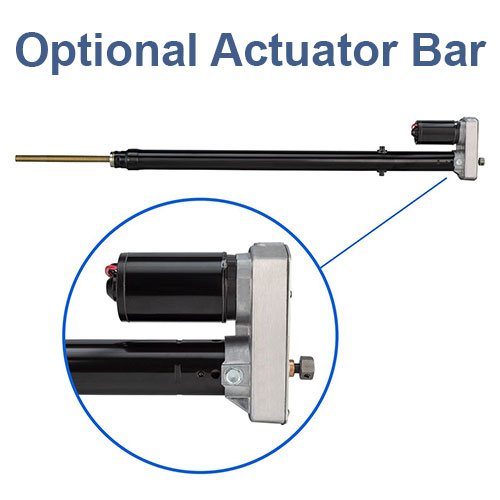

Optional Actuator Bar
